LABELX JR

“A Compact and Reliable Labeling Solution with LABELX JR.”

Güçoğlu Makine San. ve Tic. A.Ş.

LABELX JR offers a reliable solution for businesses’ labeling needs with its self-adhesive labeling system, which features a stepper motor and microprocessor control and is designed for use in automated production lines. It is widely preferred across many industries thanks to its compact structure and user-friendly design.

Technical Specifications
Electronic Control: Easy to use with a separate microprocessor-controlled control unit.
Label Height: Compatibility with various labeling needs through options of 10–140 mm or 30–250 mm (including carrier paper).
Maximum Speed:
30 meters/minute for 140 mm labels.
20 meters/minute for 250 mm labels.
Motor: Precise and continuous operation with an Ever Elektronika stepper motor.

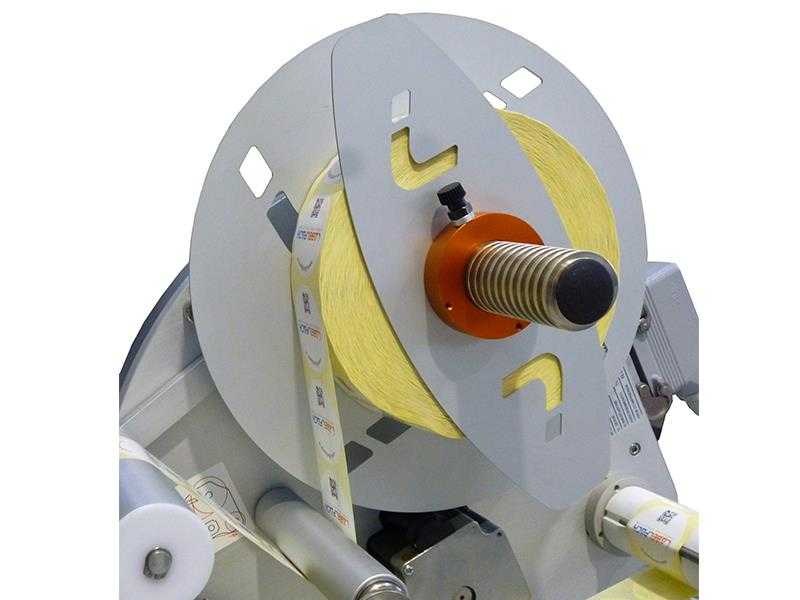

Label Roll Capacity: Maximum 300 mm outer diameter, for long-term continuous use.
Photoelectric Sensor: Height-adjustable, precise label detection (not suitable for transparent labels).
Additional Features:
Automatic missing label skip system.
Process tracking with a label counter.
Power and Energy Consumption
Power Supply: Single-phase, 230V, 50/60 Hz.
Energy Consumption: 350 W for low energy costs.
Accessories and Extras

LABELX JR is compatible with various accessories to meet your specific needs:

End-of-Roll Alarm: A warning system to ensure operational continuity.
Hot or Thermal Printing Unit: Connectivity for additional printing applications.
Encoder Connection: For higher precision and synchronization.
Transparent Label Sensor: Detection support for transparent labels.
Usage Benefits
Easy integration in tight spaces thanks to its compact size.
Adaptability to many different industries thanks to its flexible and reliable performance.
Operational ease with simple setup and maintenance.
LABELX JR is an ideal solution for optimizing labeling processes and speeding up production lines.

Combine reliability and performance in your labeling processes with LABELX JR!
