LABELX

“High-Performance Automatic Labeling Solution with LABELX”

Güçoğlu Makine San. ve Tic. A.Ş.

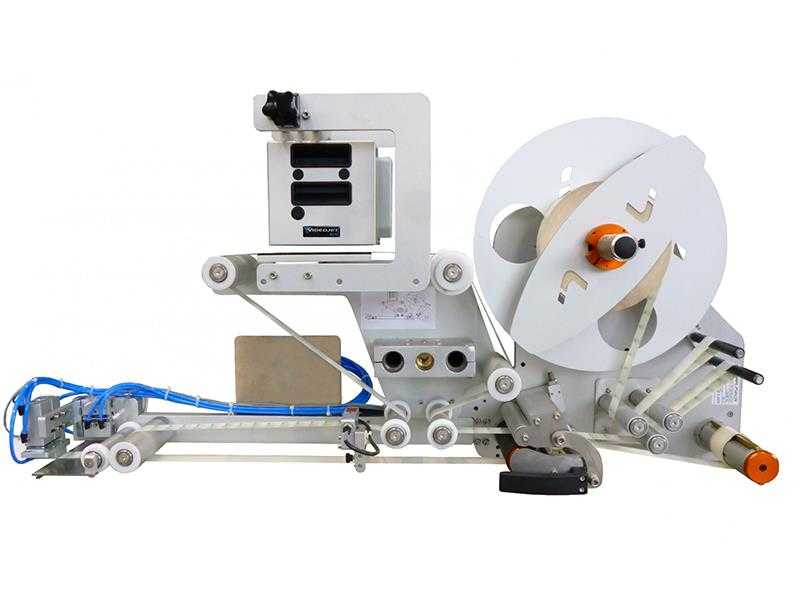

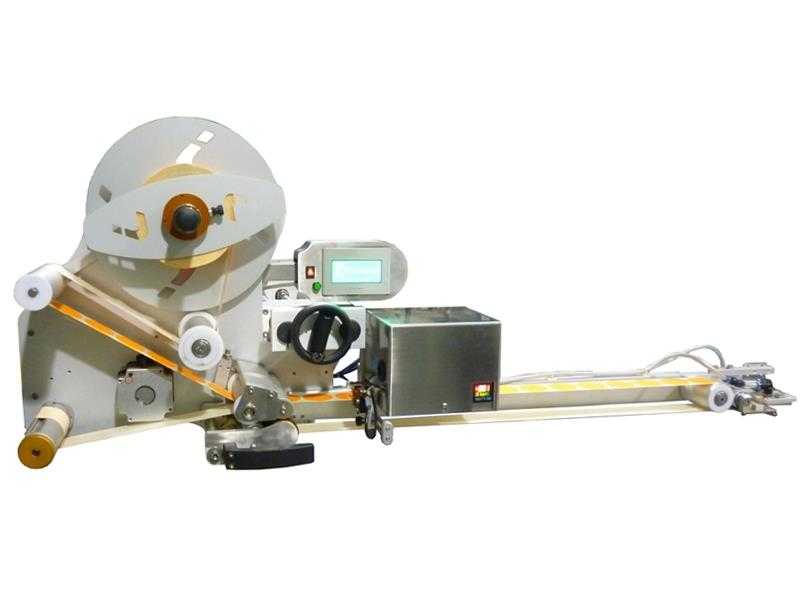

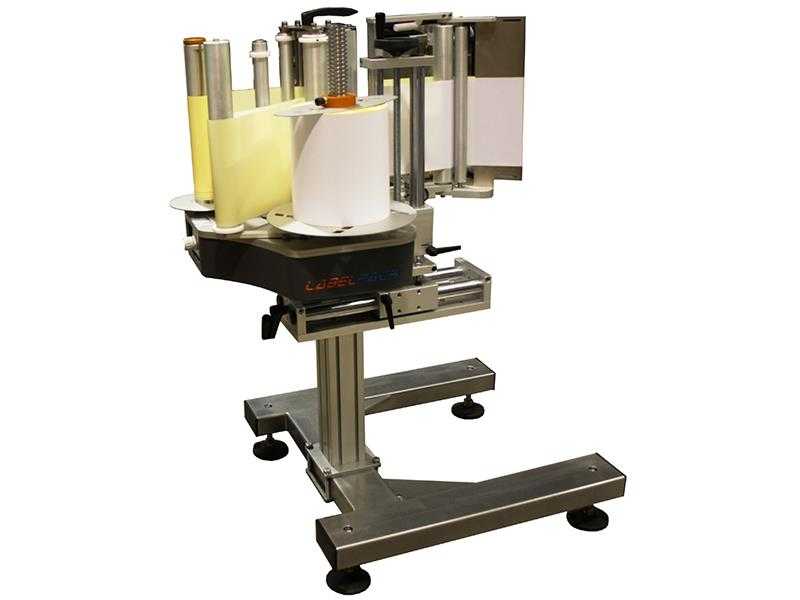

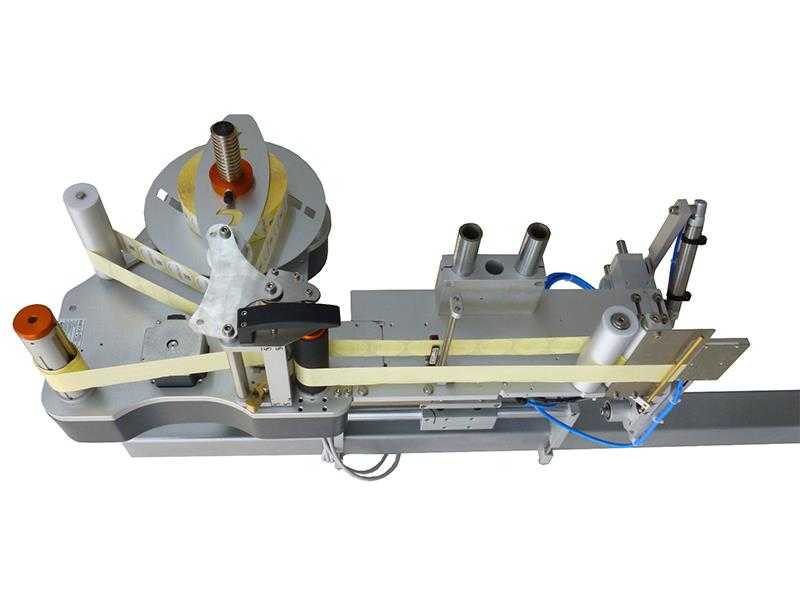

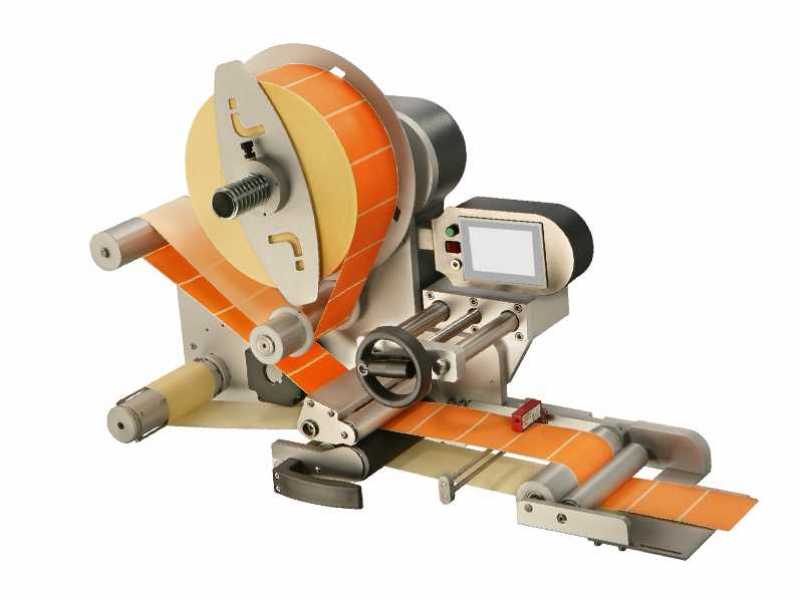

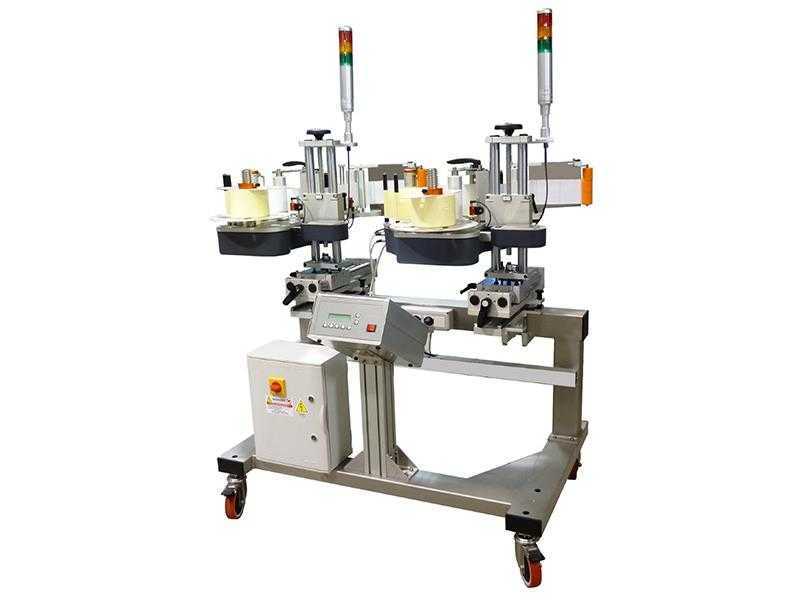

LABELX is a microprocessor-controlled labeling system equipped with a stepper motor, designed for use in automated production lines. With its reliable construction and advanced technological features, it optimizes production processes and enhances operational efficiency.

Technical Specifications
Electronic Control: User-friendly operation via a touchscreen panel.
Label Height:
10–140 mm,
30–250 mm,
40–350 mm options for a wide range of applications.
Maximum Speed:
55 meters/minute for 140 mm.
35 meters/minute for 250 mm.
25 meters/minute for 350 mm.
Motor: Ever Elektronika stepper motor for high precision and durability.
Label Roll Capacity: Long operating time with a maximum outer diameter of 300 mm.
Label Sensor: Height-adjustable, precise detection (excluding transparent labels).
Memory Feature: Stores information for 100 different products, enabling quick switching.
Additional Features:
Automatic missing label skip system.
Process tracking with a label counter.
Power and Consumption
Power Supply: Single-phase, 230V, 50/60 Hz.
Power Consumption: 400 W for powerful performance.
Accessories and Extras

LABELX is supported by accessories designed to meet a variety of needs:

End-of-Roll Alarm: Alerts the operator when the label roll is running out.
Hot or Thermal Printing Unit: Can be integrated to meet printing requirements.
Encoder Connection: For more precise and synchronized operations.
Transparent Label Photoelectric Sensor: Specialized photoelectric sensor support capable of detecting transparent labels.
Usage Benefits
It adapts to different production lines with a wide range of labeling options.
Quick and easy setting adjustments via the touchscreen.
Accelerates production processes with high speed and precision.
LABELX combines reliability, performance, and flexibility in labeling operations. Take your production line to the next level with features tailored to your needs.
